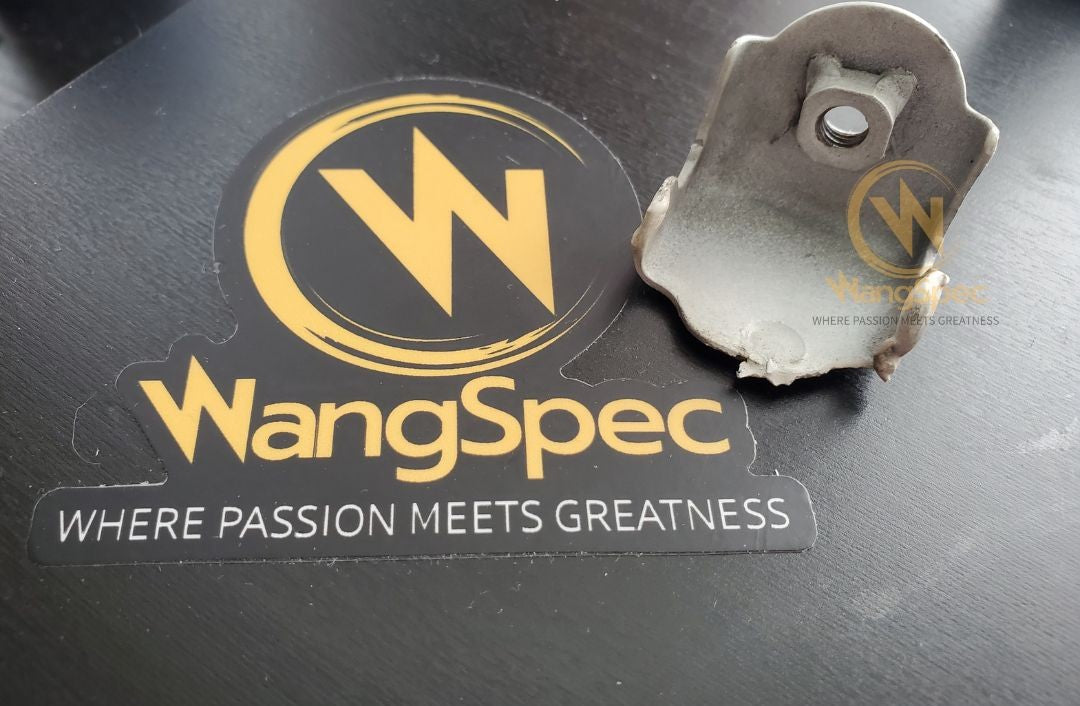

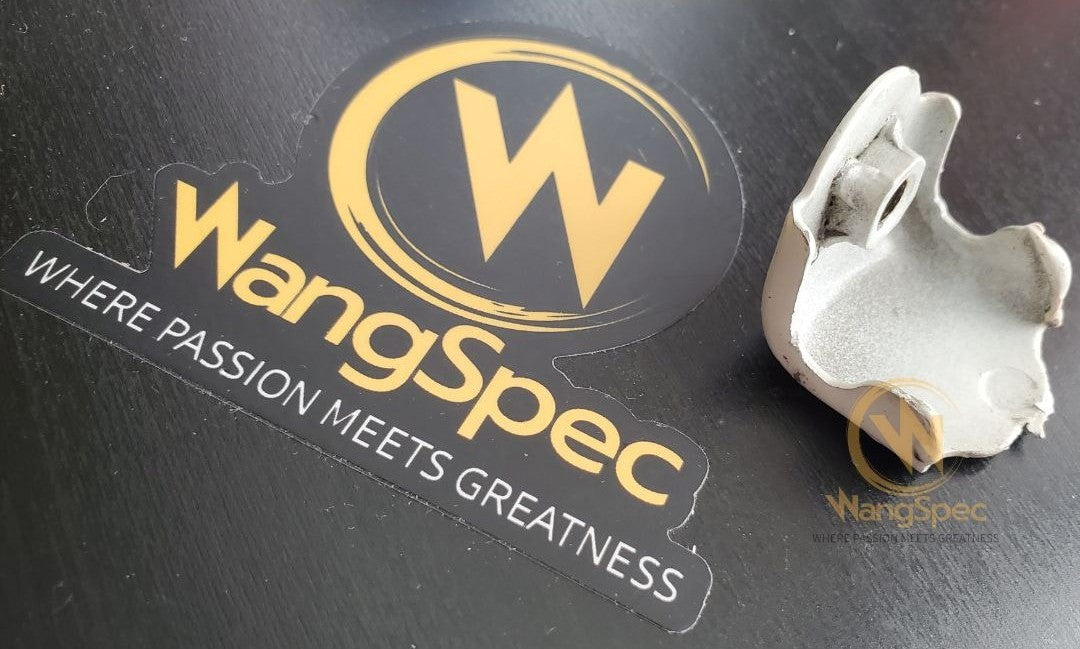

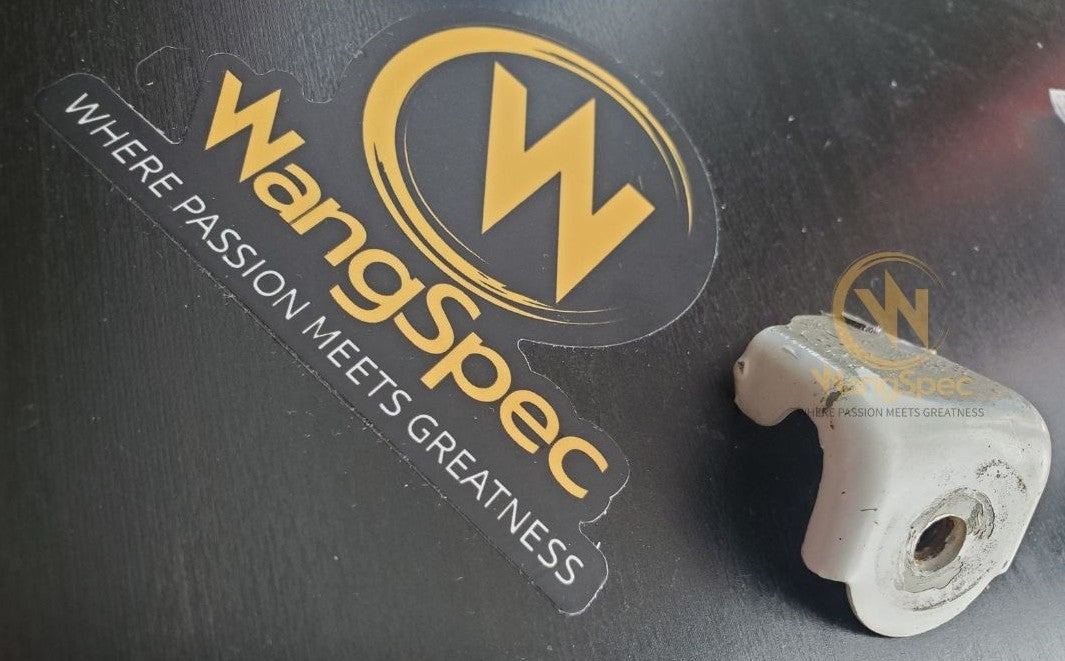

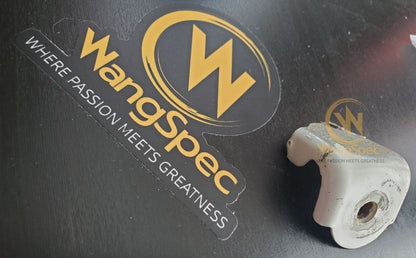

This is a free downloadable STL file. The Stock Metal Bracket is for illustration purposes only.

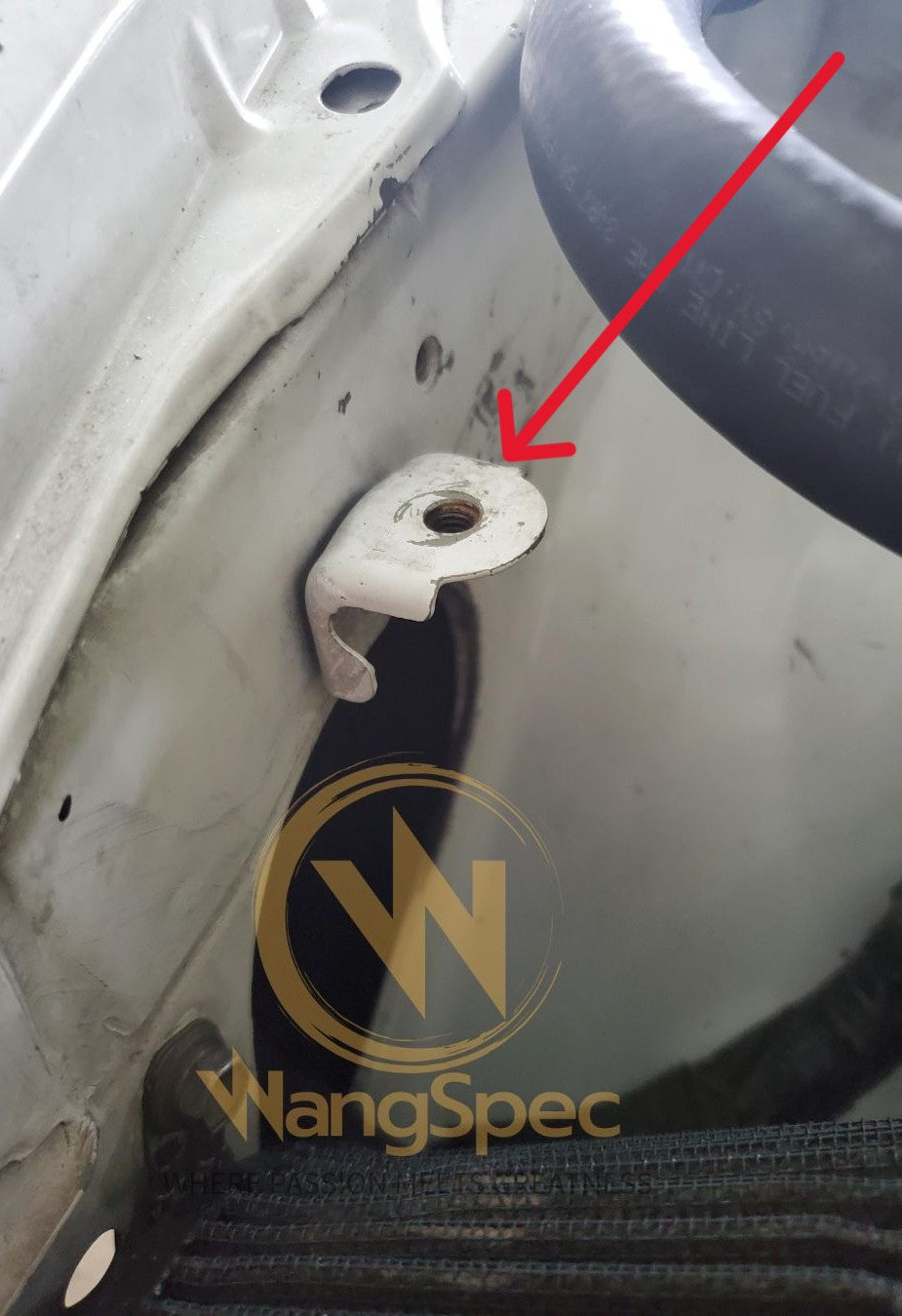

The factory engine bay bracket for the OEM air box is not available separately from the apron assembly, making replacement difficult when damaged or missing.

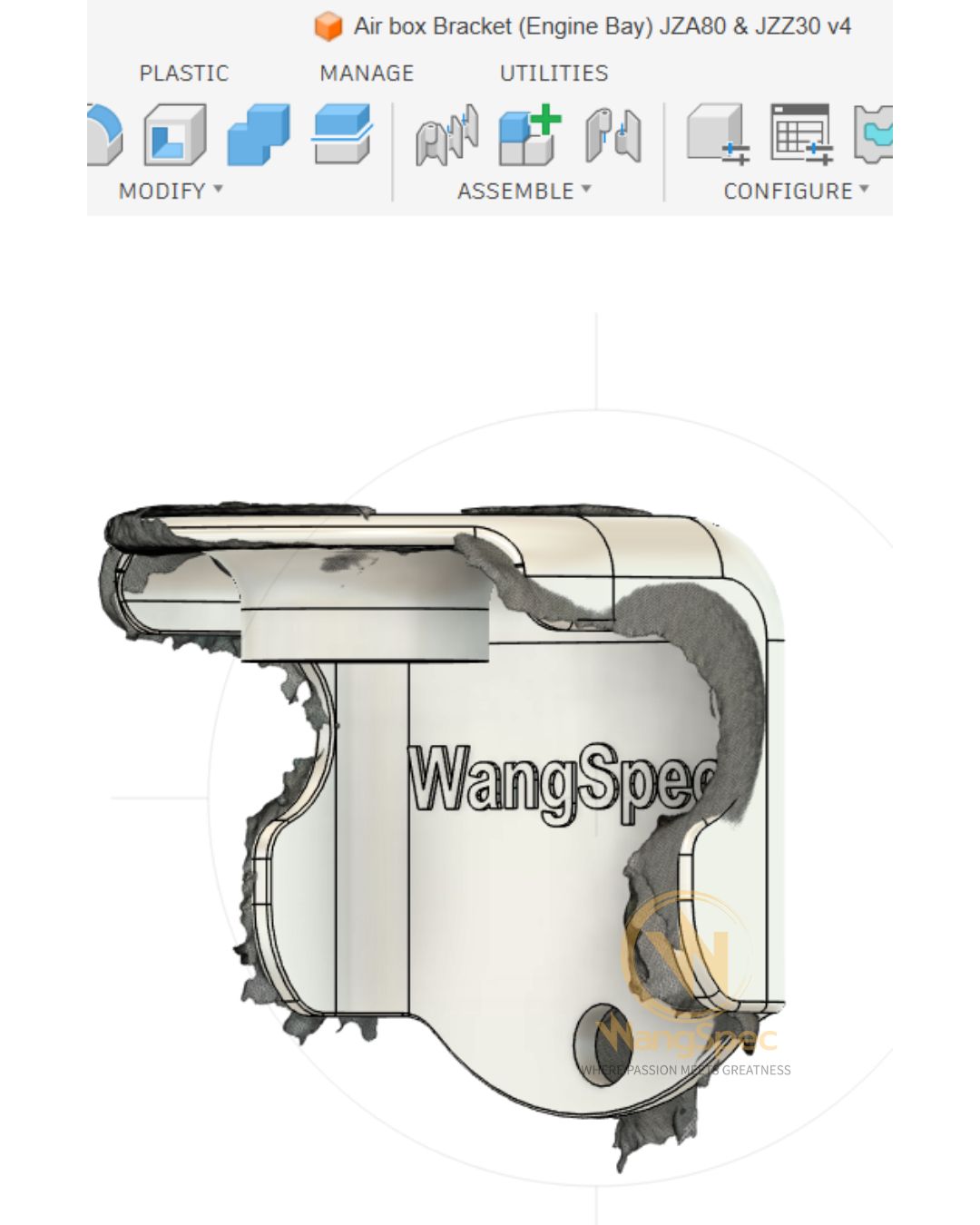

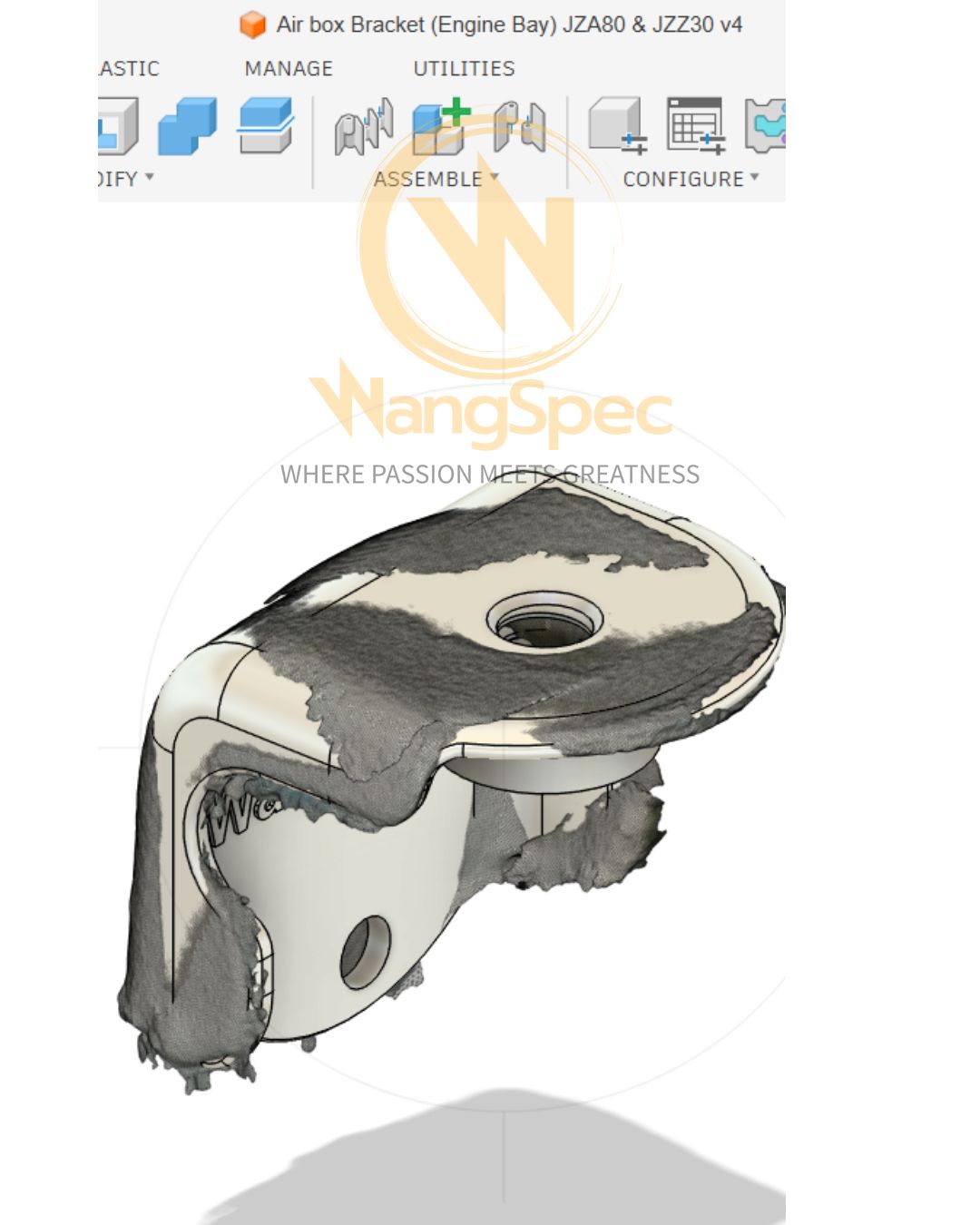

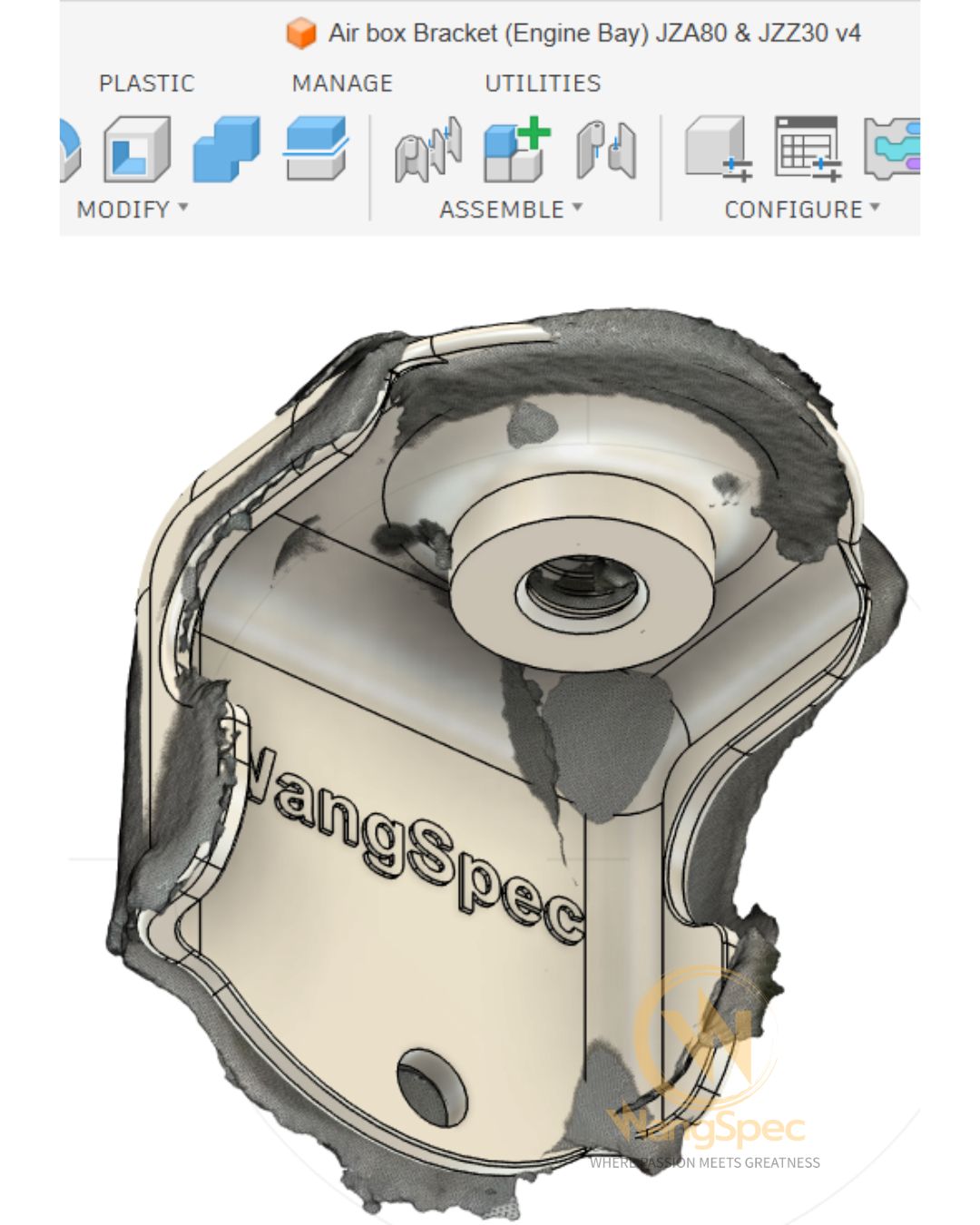

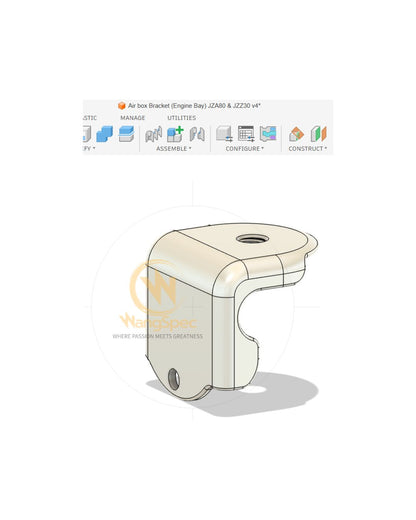

This bracket has been reverse engineered from the original stamped steel component and improved for durability and usability.
Key Improvements:
Increased wall thickness from 1.0mm → 1.5mm to reduce deflection

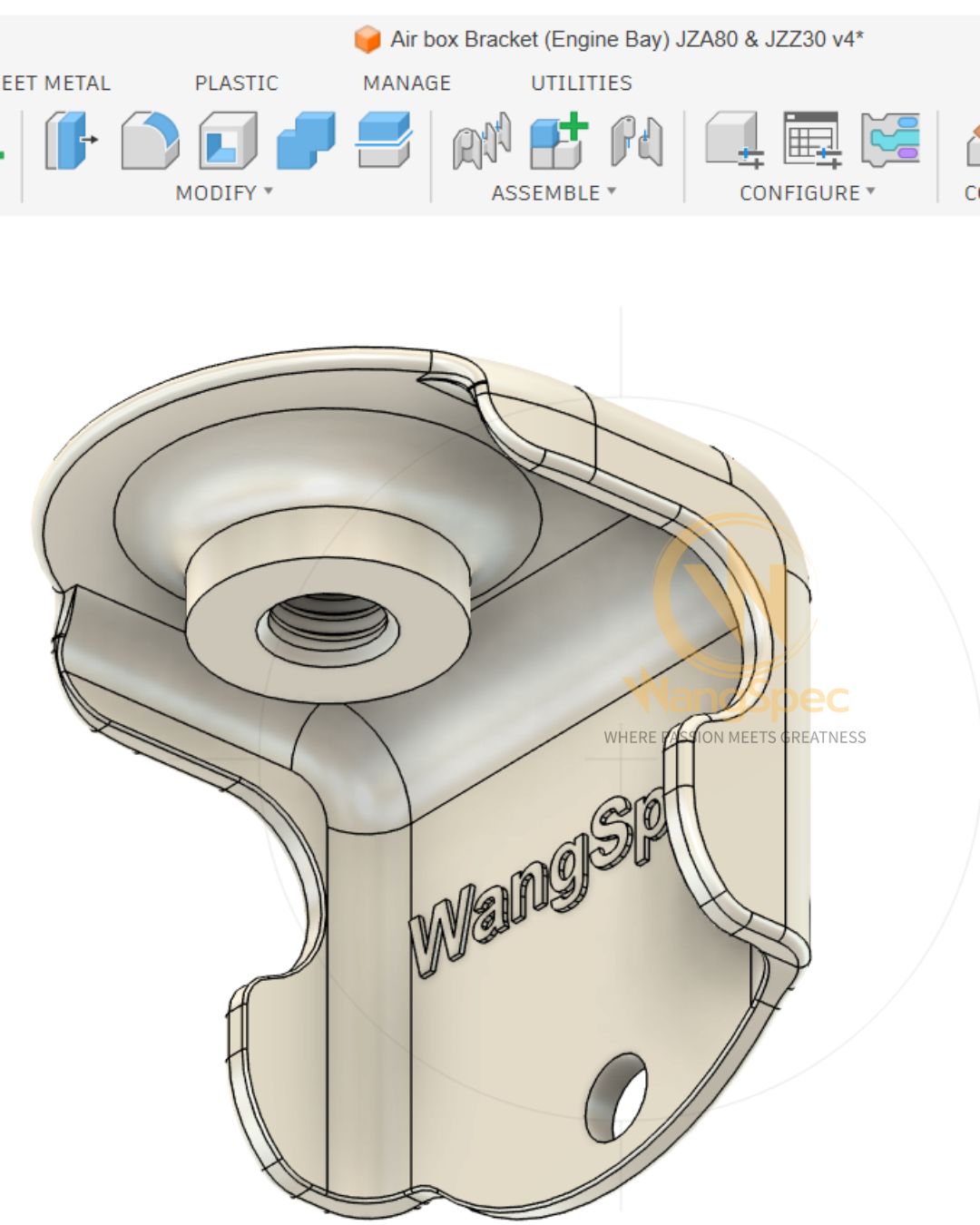

Integrated threaded bung replaces the OEM spot-welded nut for improved load distribution
Threads are pre-modeled and require tapping after printing
Retains OEM geometry for proper fitment

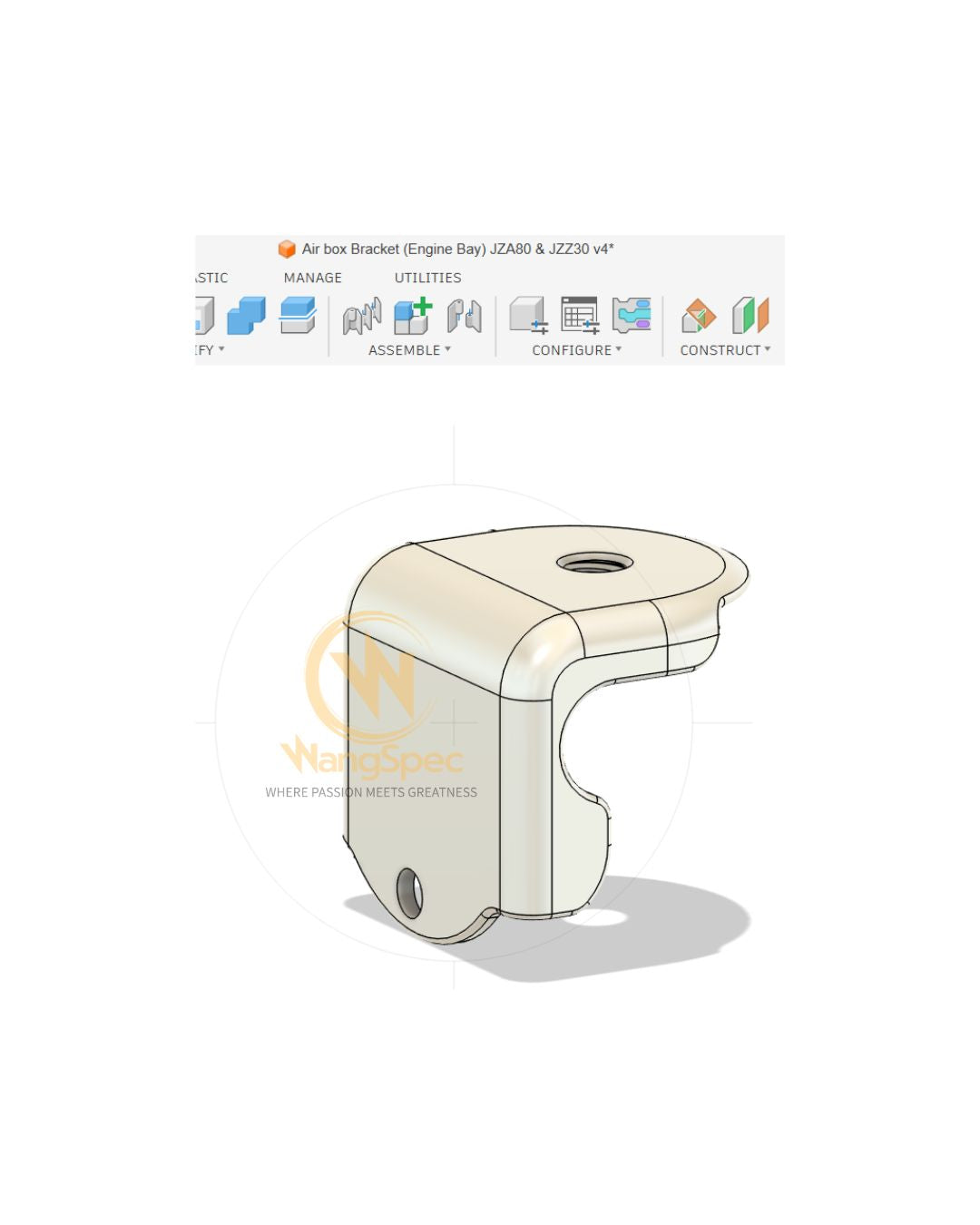

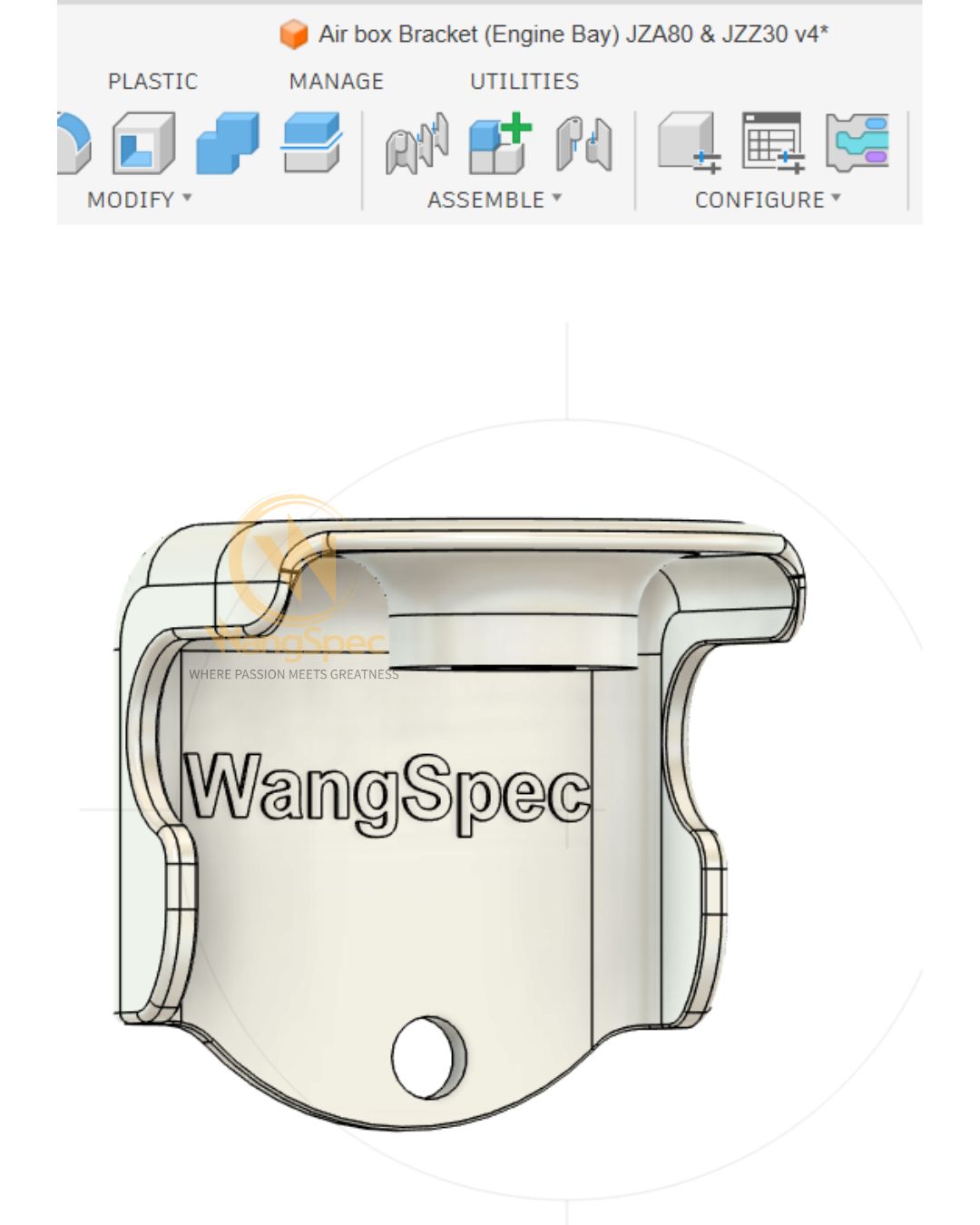

A cutout is retained at the original spot weld location, allowing users to weld the bracket to the chassis if desired, similar to the factory design.
This file can be used to produce a replacement bracket using metal additive manufacturing or other suitable processes.
Usage Notes:
Thread chasing/tapping required after printing
Welding may be required depending on installation method
Intended for experienced users familiar with fabrication and installation
License & Use:
This file is provided free of charge to support the community.
Personal use only
Do not resell or redistribute without permission
Credit WangSpec where applicable
All standard disclaimers apply. Use at your own risk.
