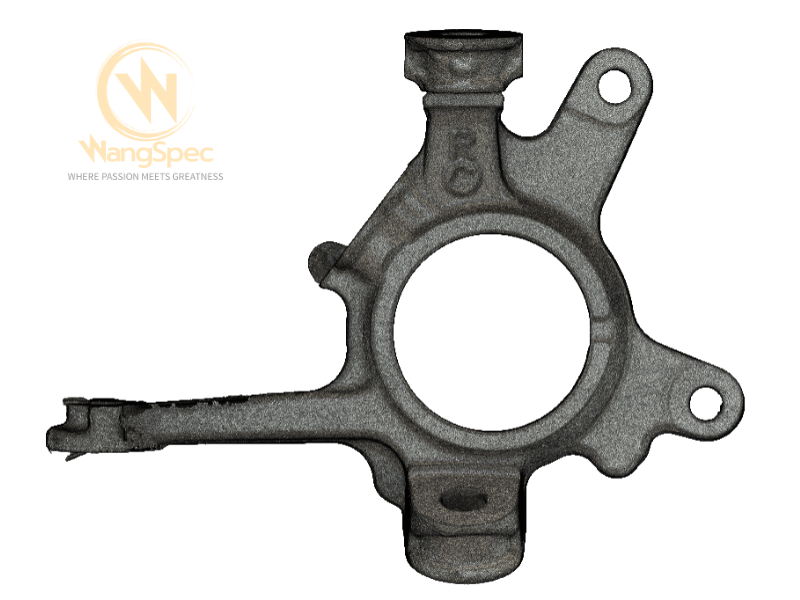

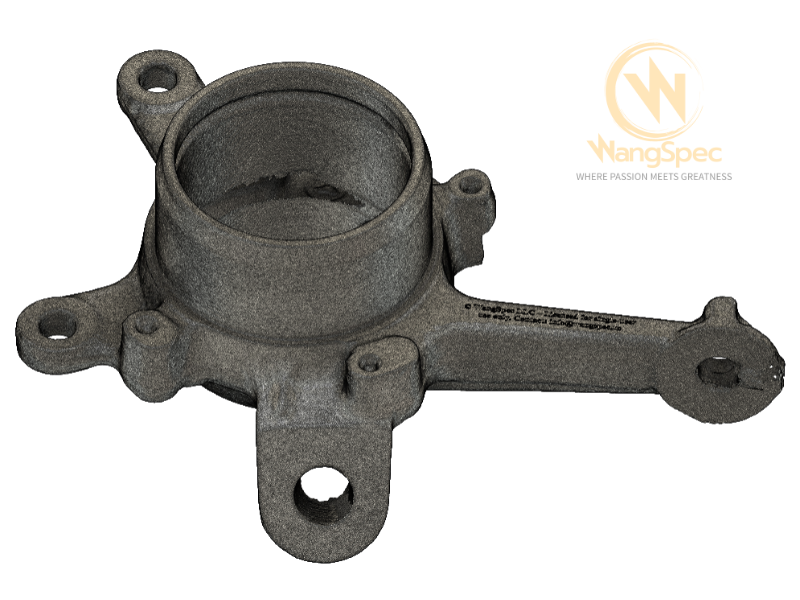

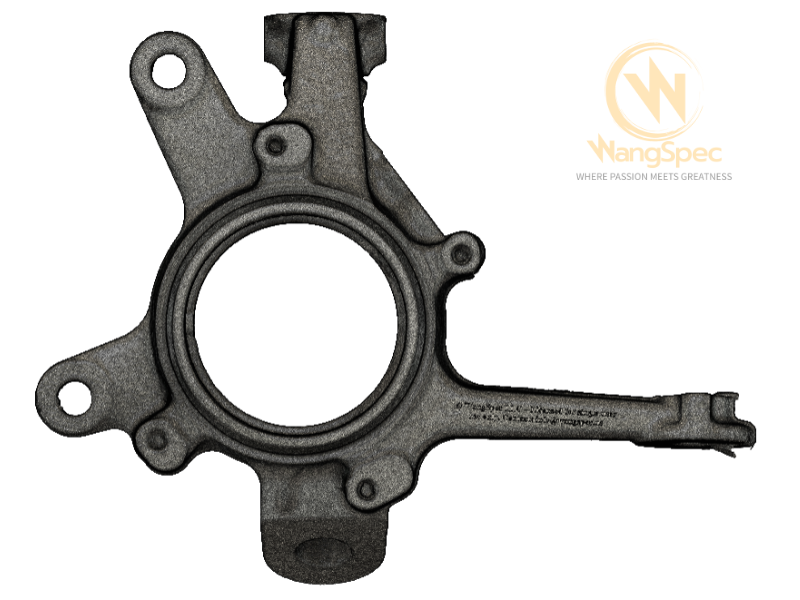

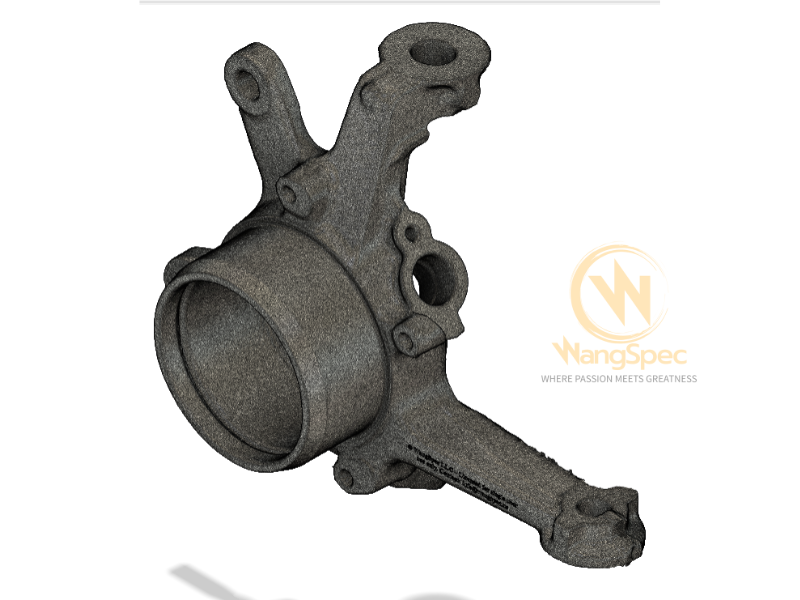

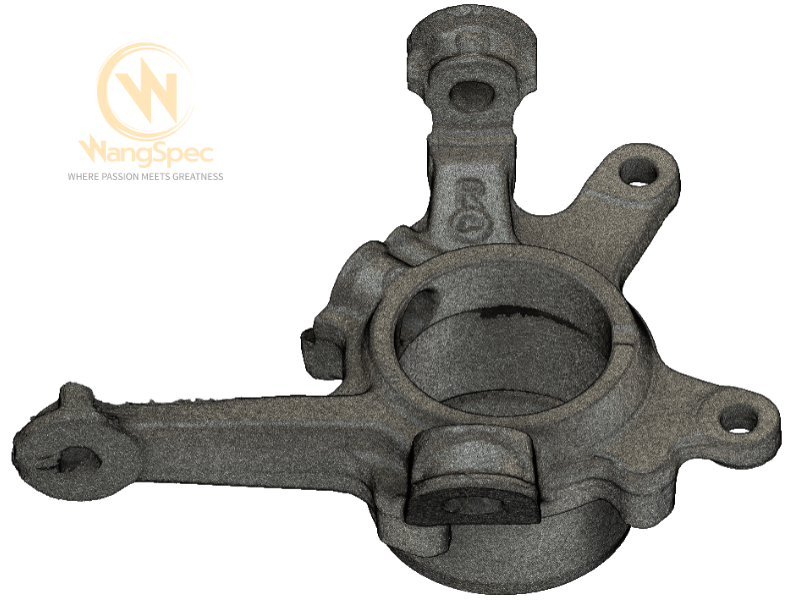

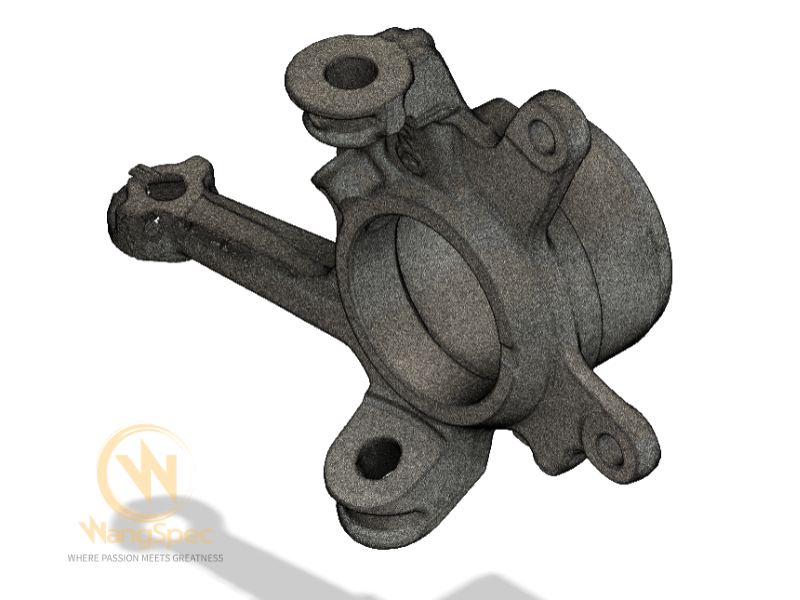

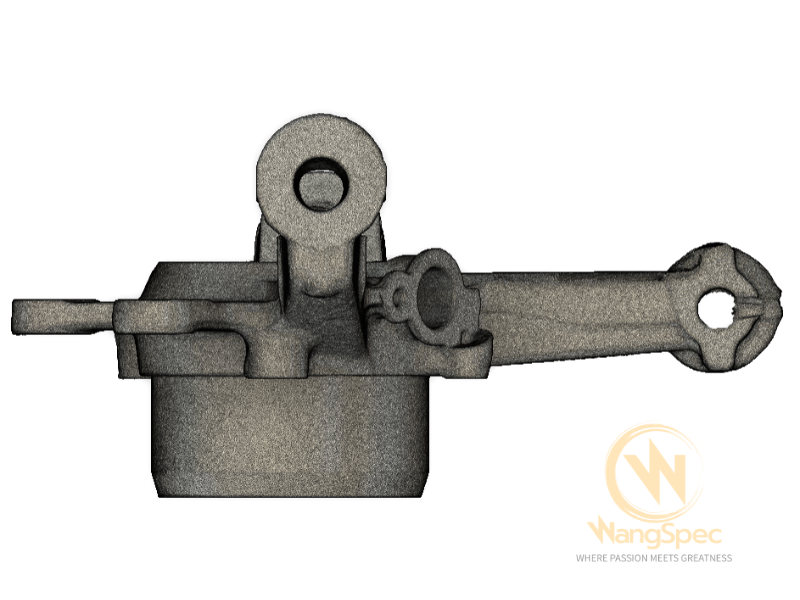

Scan Overview High-resolution STL mesh scan of the Toyota Supra / Lexus SC RH steering knuckle - The same data used internally at WangSpec for brake duct shield development.

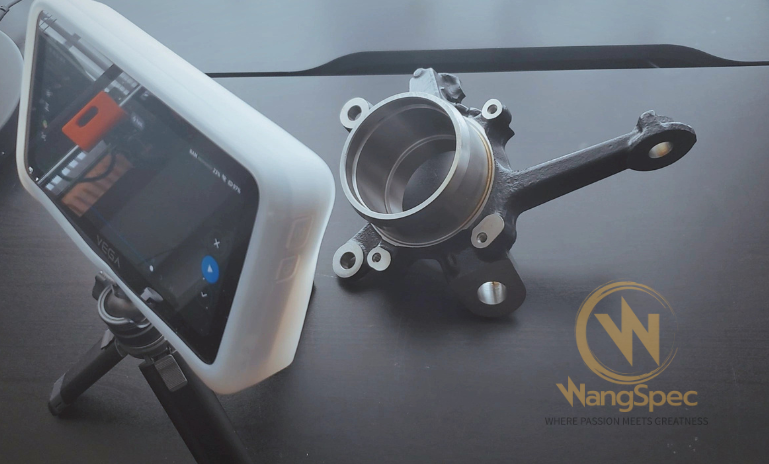

Photo illustrates scanning process. This listing is for the digital 3D STL file only - no physical parts are included.
File Details:
Format: STL
Polygon Count: ~2.59M
Scanner Used: Einstar Vega (advertised 0.1 mm accuracy)
Alignment: Roughly aligned to XYZ axes
Notes
RH steering knuckle only (JZA80 Supra / JZZ30 SC300 platform)
Scan includes factory mounting bosses, brake caliper ears, and dust shield mounting holes
Minor mesh imperfections and open holes may be present due to scan limitations
Download Info Files are delivered as a ZIP archive and include:
STL mesh
License.txt (Single-user license)
README.txt (scan notes + disclaimers)
Download link will be emailed within 24 hours of purchase. Link remains active for 7 days. Need a new one later? Just ask - we got you.
Intended Use:
Brake duct shield design & prototyping
Custom suspension/steering components mockup
CAD reference or visualization projects
License:
This file is digitally watermarked and licensed for single-user use only. Redistribution, resale, or upload to public repositories is prohibited.
Disclaimer:
Due to the nature of digital goods, all sales are final. If you're unsure whether this scan fits your needs, contact us before purchase.
