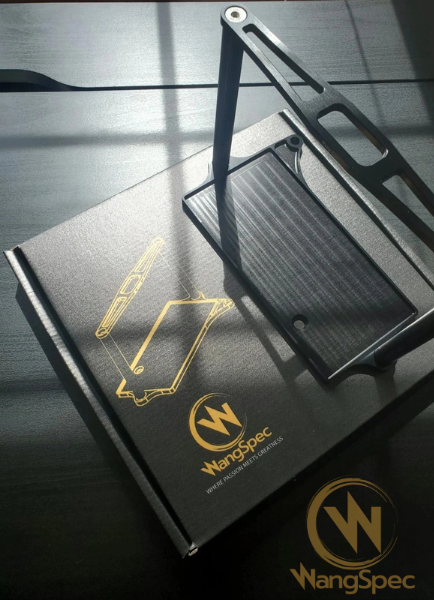

Billet Battery Tray Kit – ATX-20 | Lexus SC (JZZ30) & MKIV Supra (JZA80)

Billet Battery Tray Kit – ATX-20 | Lexus SC (JZZ30) & MKIV Supra (JZA80)

WS-001-E-BK

$99.88 USD
$114.99 USD $99.88 USD
Sale Coming Soon
Shipping calculated at checkout.
Color: Black

18 in stock
Weight Reduction

The factory 24F-style battery setup places unnecessary weight directly over the front axle.

Our Billet Battery Tray Kit allows for a vehicle weight reduction of up to approximately 35 lbs from the front end by adapting the chassis to a compact AntiGravity ATX-20 lithium battery.

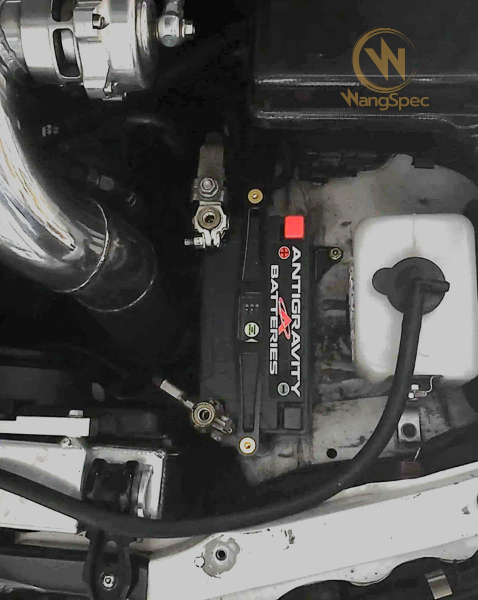

Developed from precision 3D scans, this kit bolts directly into the factory tray mounting positions using original mounting holes. No cutting, relocation of factory lines, or chassis drilling is required for installation.
What Is Included

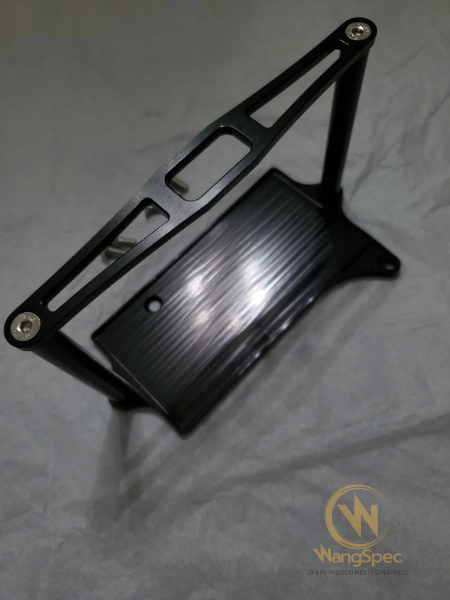

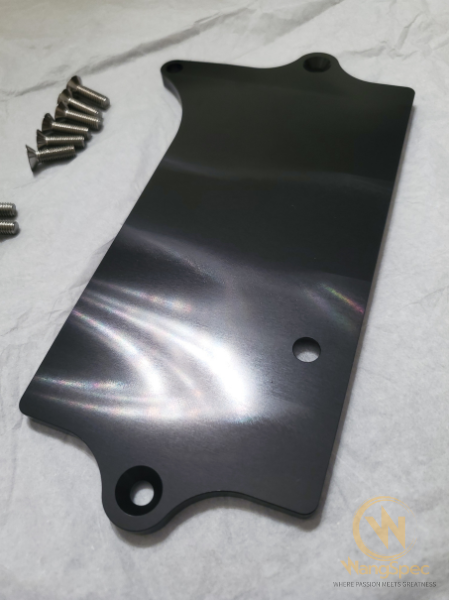

  • Lower Tray: CNC-machined 6061 billet aluminum base.
  • Retaining Plate: CNC-machined 6061 billet aluminum top clamp.

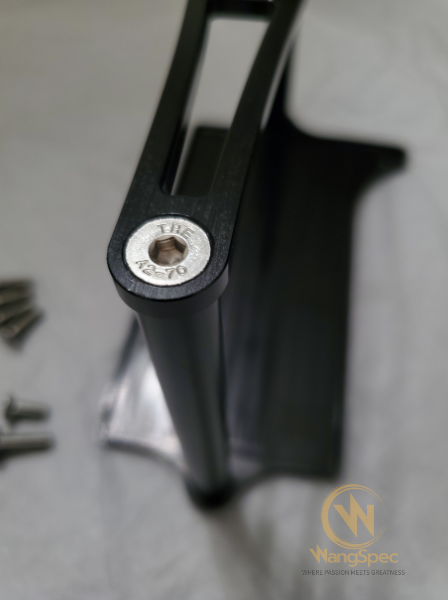

  • Hardware: Stainless steel assembly fasteners.
  • Documentation: Step-by-step PDF installation and assembly guide.

Small Batch / Pre-Tariff Inventory Note

This current batch was produced and landed before the latest tariff-related cost changes.

Because of that, this batch is still listed at the current price. Once this inventory is sold through, future batches may be repriced based on updated manufacturing, importing, and replacement costs.



📄 Product Installation & Information Guide


⚠️ Off-Road and Racing Use Only:
Unless explicitly stated otherwise, this product is intended for off-road or closed-course competition use only. It is not certified for public road use and may not comply with local emissions or safety regulations. The end user assumes all responsibility for legal compliance in their jurisdiction.

Product Overview

  • Design Purpose: Replaces heavy original equipment with a lightweight, direct-bolt architecture to drop front-end mass without structural modifications.
  • Surface Treatment: Type II black anodized finish for permanent corrosion and wear resistance.
  • BMS Accessibility: Features an integrated center access hole to let you use the ATX-20 push-button battery management system restart function without removing the hold-down plate.
  • Cable Management: Engineered to maintain proper terminal alignment with factory-style battery cable paths, eliminating the need to stretch or cut factory wiring.

Technical

Tray Mass: Approximately 0.75 lbs.

Total Weight Reduction: Up to 35 lbs removed when combined with an AntiGravity ATX-20 battery.

Material Composition: CNC-machined 6061-T6 billet aluminum.

Internal Cavity Dimensions:
174 mm Length
85 mm Width
130 mm Height
(6.85 in x 3.35 in x 5.11 in).

Required Component: Lithium battery is not included with this mount kit.

Fitment

Chassis Compatibility:
1993–1998 Toyota Supra (JZA80 / MKIV)
1991–2000 Lexus SC300 / SC400 / Toyota Soarer (JZZ30)

Battery Compatibility: Dimensionally optimized specifically for the AntiGravity ATX-20 lithium battery framework (compatible with both ATX20-RS and ATX20-HD models). This unit is a vehicle-specific mount and will not function as a universal tray.

Fitment Guarantee: If the tray fails to bolt into the designated chassis using the factory mounting points, contact customer support to arrange a resolution. Returns must be unused, unmodified, and in resaleable condition unless a manufacturing defect is present.
