Titanium Front Brake Pad Shim Kit – TRD Monoblock & Lexus LS430 (UCF30/UCF31, 2000–2006)
Titanium Front Brake Pad Shim Kit – TRD Monoblock & Lexus LS430 (UCF30/UCF31, 2000–2006)
SKU:WS-005-B-FR-1
Regular price
$129.88 USD
Regular price
$180.88 USD
Sale price
$129.88 USD
Unit price
/
per
Shipping calculated at checkout.
In stock
Couldn't load pickup availability
Thermal Isolation
Our Titanium Brake Pad Shims install directly between the brake pad backing plates and the caliper pistons. This kit establishes a high-resistance thermal barrier designed to limit heat transfer into the caliper assemblies during heavy braking.
By reducing the thermal load transmitted through the pistons, the shims help lower peak operating temperatures of the caliper fluid seals and internal brake fluid, mitigating the risk of fluid boiling and pedal fade.
By reducing the thermal load transmitted through the pistons, the shims help lower peak operating temperatures of the caliper fluid seals and internal brake fluid, mitigating the risk of fluid boiling and pedal fade.
What Is Included

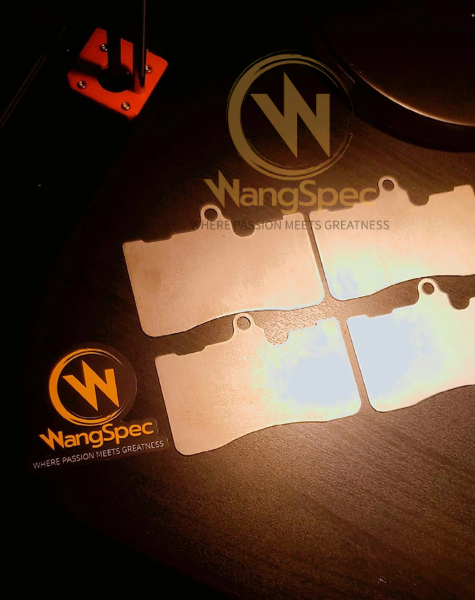

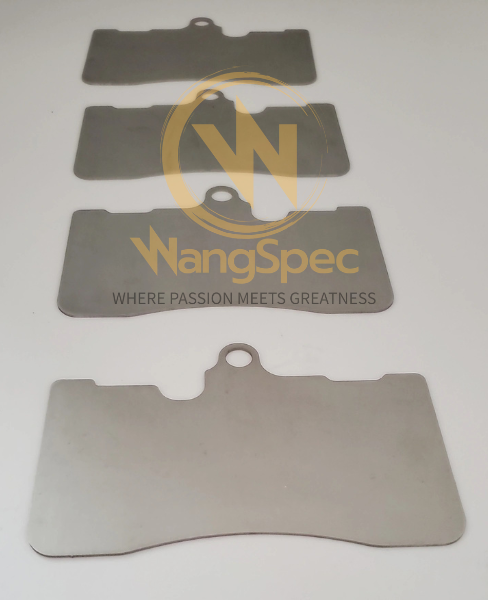

- Titanium Brake Pad Shims: 4 shims for a complete front axle set for two calipers.
- Feature Clearances: Integrated reliefs for OEM brake pad wear sensors.
- Surface Finish: Matte texture for a rugged appearance.
- Warranty: 1-year limited coverage protecting against manufacturing and material defects.
⚠️ Off-Road and Racing Use Only:
Unless explicitly stated otherwise, this product is intended for off-road or closed-course competition use only. It is not certified for public road use and may not comply with local emissions or safety regulations. The end user assumes all responsibility for legal compliance in their jurisdiction.
Product Overview
Product Overview
- Application Focus: Engineered specifically to insulate Lexus LS430 front brake calipers, and rare TRD Monoblock calipers for JZA80 Supra.
- Material Architecture: Utilizes titanium alloys to capitalize on their natural low-thermal-conductivity properties relative to conventional brake shim materials like aluminum or steel.

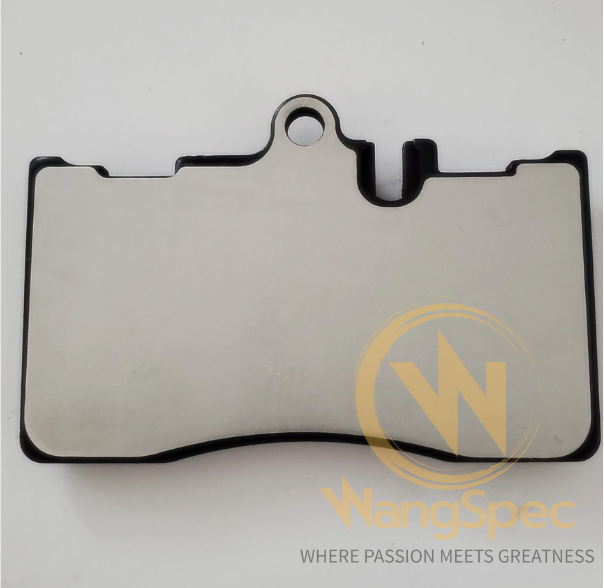

- Fitment Integrity: Profile-matched to the pad footprint to ensure full piston surface coverage without causing pad binding inside the caliper carrier.
Technical
Technical
- Thickness Profile: 1.0 mm thickness across both material variations.
- Grade 2 Titanium Conductivity: Approximately 16.4 W/m·K. An option balancing cost-effectiveness with raw corrosion resistance.
- Grade 5 Titanium (Ti-6Al-4V) Conductivity: Approximately 6.7 W/m·K. This premium variant provides the lowest thermal conductivity for maximum thermal protection.
- Baseline Comparisons: For engineering reference, 304 Stainless Steel exhibits ~14–17 W/m·K, while 6061 Aluminum transfers heat rapidly at ~151–202 W/m·K.
- Notice: Brake calipers and brake pads are not included with this shim kit.
Fitment
Fitment
Chassis Application:
2000–2006 Lexus LS430 / Toyota Celsior (UCF30 / UCF31) Front Brakes.
TRD Japan Monoblock Calipers (Part Numbers: Right 47710-SP010 / Left 47720-SP010).
