3D Printed Metal Front Brake Duct Shields (Pair) - Toyota JZA80 Supra / Z30 Soarer (SC300)

SKU:WS-003-B-RH-SS, WS-004-B-RH-SS

$499.88 USD

~~$550.00 USD~~ $499.88 USD

Sale Coming Soon

Shipping calculated at checkout.

Material Selection Stainless Steel (316L) Titanium (TiAl6V4)

Quantity

Low stock: 1 left

🔥 Stop Brake Fade. Keep Laps Consistent. Protect Your Hubs.

Lap 1 feels incredible. By Lap 5, your brake pedal turns to absolute mush because radiant thermal energy from your rotors is boiling your brake fluid, accelerating pad wear, and literally melting your dust boots. You lose confidence, your lap times drop, and your track day cuts short.

Our Front Brake Duct Shields solve this. Utilizing industrial SLM metal 3D printing, these shields act as a high-velocity, targeted air-delivery system—forcing cool air directly into the center of your rotor hat to drop temperatures instantly so you can stay flat-out for entire sessions.

🔒 Made-to-Order

Each pair is made-to-order using SLM 3D printing.
⏳ Typical lead time: 4–5 weeks (seasonal production backlog).

🔒 Warranty

Lifetime warranty against manufacturing defects (fitment or structural failure under normal use).

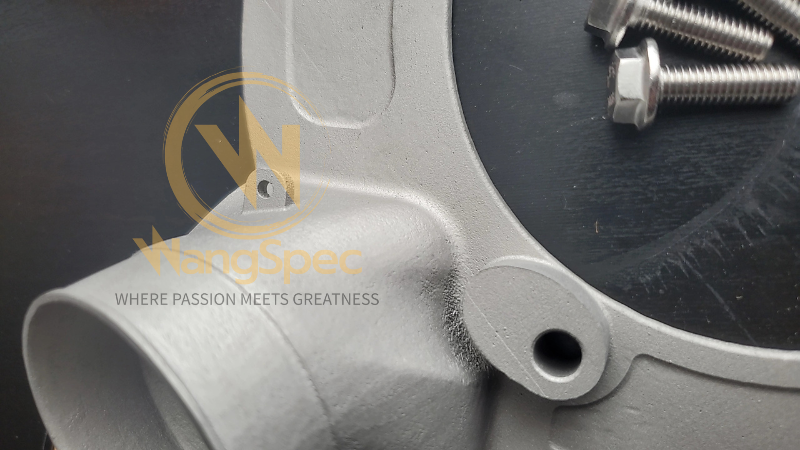

Normal SLM build texture or minor post-processing marks are cosmetic and not covered.

📄 Product Installation & Information Guide

⚠️ Off-Road and Racing Use Only:
Unless explicitly stated otherwise, this product is intended for off-road or closed-course competition use only. It is not certified for public road use and may not comply with local emissions or safety regulations. The end user assumes all responsibility for legal compliance in their jurisdiction.

Product Overview

⚙ Material Specifications

316L Stainless Steel (Standard, Best value):

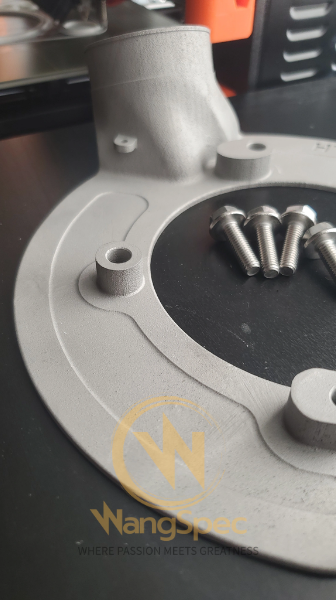

Zero Welds, Zero Rust: Built as a rugged, single-piece structure with integrated mounting spacers. It will never crack at a weld seam or rot away like cheap factory stamped steel.
The 95% Solution: Delivers elite-level thermal protection and structural reliability for the absolute best performance-to-dollar ratio on the market.

Weight: 0.9 lbs per side (1.8 lbs per pair).

TiAl6v4 Titanium (Max Effort):

45% Weight Reduction: All of the corrosion resistances of Stainless Steel, 45% lighter weight. Shaves critical unsprung mass directly at the knuckle assembly, sharpening steering response and allowing your suspension to react faster to track curbing.
Ultimate Thermal Firewall: Titanium possesses incredibly low thermal conductivity. It acts as a literal heat shield, keeping intense rotor heat entirely isolated from your expensive wheel bearings, hub grease, and suspension ball joints.

Weight: 0.5 lbs per side (1 lb per pair).

Technical

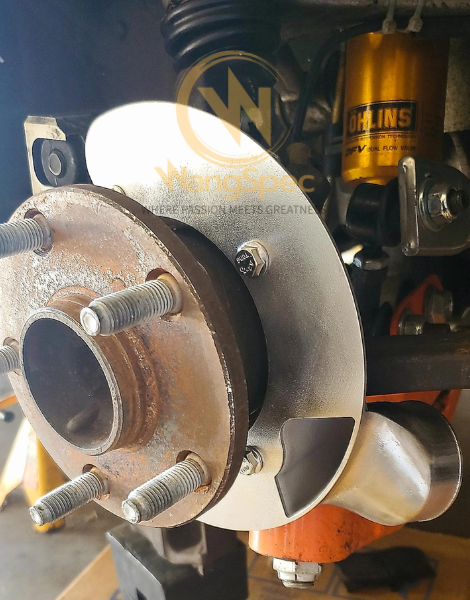

No Wheel Bearing Removal: Precision engineered to slide on and bolt down seamlessly without pressing out your wheel bearings or dismantling the front hub assembly.

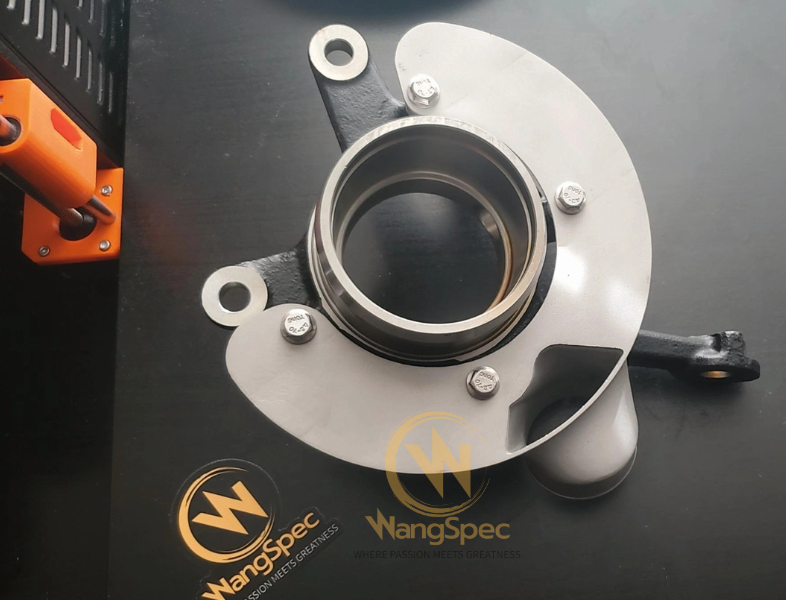

3D Scanned: Modeled directly from factory knuckle scans for perfect clearance and organic, smooth aerodynamic transitions.

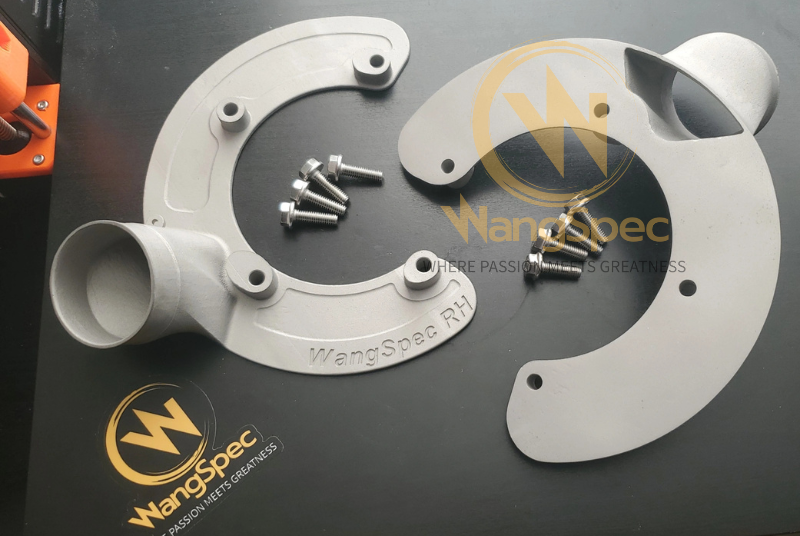

📦 WHAT'S INCLUDED:

(1) Left-Hand (LH) 3D Printed Metal Shield

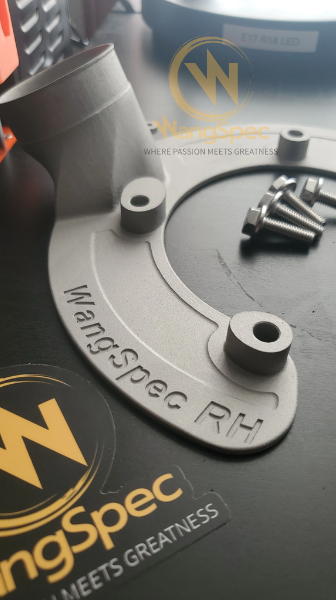

(1) Right-Hand (RH) 3D Printed Metal Shield
Stainless Steel Mounting Fasteners

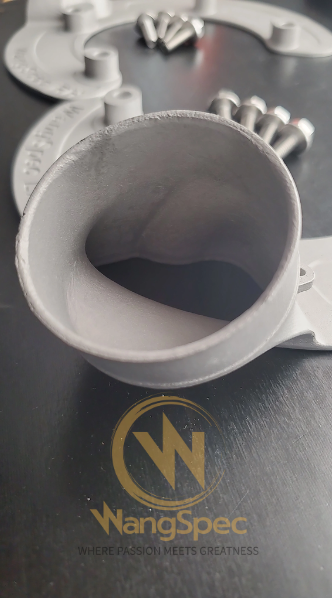

50mm (2”) Inlets
Digital Step-by-Step Installation & Assembly Guide (PDF)

Bundle Savings: Pair with our Front Bumper Ducts (50mm) and save $25 automatically at checkout.

Fitment

1993-2002
Toyota Supra (With USDM/UK 4-Piston Front Brakes)

1991-2000
Lexus SC (With USDM/UK Supra 4-Pison Front Brakes)

Fitment Guranteed : If these don’t fit your OEM Supra/Soarer knuckles, return them. No hassle.

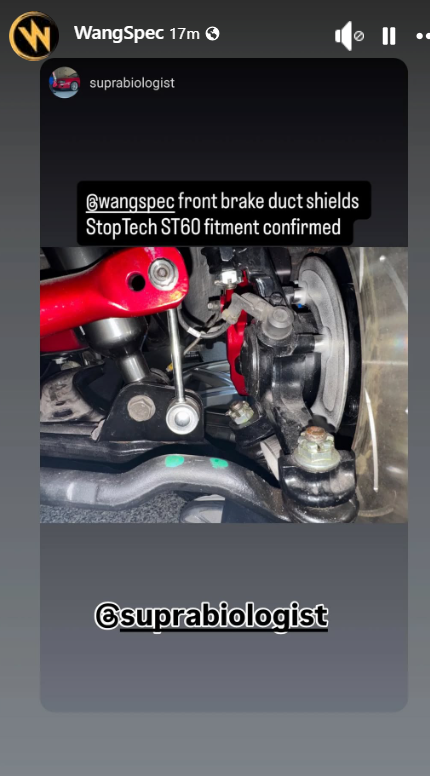

Verified Big Brake Clearance

Verified to clear the following Mkiv Supra BBK setup:
• StopTech ST-60

Limitations :

Designed for OEM Toyota knuckles → not guaranteed with angle kits, bump steer correction, or modified uprights.
Clears factory 12.6" rotors. Minimum rotor hat ID = 190 mm.
Not compatible with tie rod relocation kits (hose entry interference).
